1.Main Information:

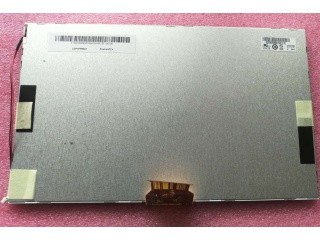

AU Optronics Corp.G101STN01.2 is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -30 ~ 70°C .
It's general features are following: WLED Backlight, Life ≥ 50K hours, 6/8 bit, Matte .
Based on its features, this model be applied to Industrial etc.
2.AUO G101STN01.2 Mechanical Features:
| Screen Size : | 10.1 Inch |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | 0.0725×0.2088 mm | 0.2175×0.2088 mm [117PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 222.72×125.28 mm | 224.72×127.28 mm | 235×143 mm | 5.0±0.5 mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | - |
| Other Spec | Mass | Panel Cover | Surface Treatment |
| 340g (Max.) | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Without |
3.AUO G101STN01.2 Optical Features:
| Basic Information | Luminance | Work Mode | Contrast Ratio |
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| - | 70/70/60/60 (Typ.)(CR≥10) | 7/9 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 64% | 48% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25 (Max.)(5 points) |
4.AUO G101STN01.2 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type | 50K(Typ.) | 8S3P | Array | - |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
| 25.6/31.7V (Typ./Max.) | 90mA (Typ.) | 2.3/2.85W (Typ./Max.) |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| No | Connector | |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| E&T | H201K-P02N-02B | 1 pcs | 2 pins | 1.25 mm | BLE-2PINS-AC |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
