1.Main Information:
G133HAN01.0 is a 13.3" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 70°C , a storage temperature range of 0 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Color Gamut, DCI-P3, sRGB, WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, Matte .
Based on its features, this model be applied to Industrial, Medical Imaging, Gaming etc.
2.AUO G133HAN01.0 Optical Features:
| Basic Information | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 400 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) |
| Best View on | Display Mode | Contrast Ratio |
| Symmetry | AHVA, Normally Black, Transmissive | 800 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 90% | 100% | 82% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 90% | 67% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.25/1.33 (Typ./Max.)(5 points) |
3.AUO G133HAN01.0 Mechanical Features:
| Panel Size | 13.3 Inch |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.15285×0.15285 [166PPI] | 0.05095×0.15285 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 293.472(H) × 165.078(V) | 295.07(H) × 166.68(V) | 309.7(H) × 184.1(V) | 10.1 (Max.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Wedge (PCBA Bent, T≥5.2mm) |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Detail : | Weight | Panel Cover | Treatment |
| 500g (Typ.) | - | Antiglare |
4.AUO G133HAN01.0 Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| WLED | Edge light type | - | - | 50K(Typ.) | - |
| Interface Features : | Position | Backlight Driver | Type |
| - | With LED Driver | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF19G-8P-1H | 1.0 mm | 8 pins | 1 pcs | |
| Driver Electrical | Voltage Supply | Current Supply | Power Consumption |
| 12.0±1.2V | 1.25A (Typ.) | 15W (Max.) |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

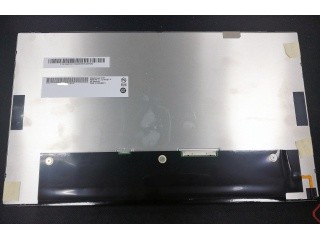

13.3 Inch Wide Color Gamut TFT LCD G133HAN01.0 DCI-P3 With LED Driver Images
|
