1. Main Information:

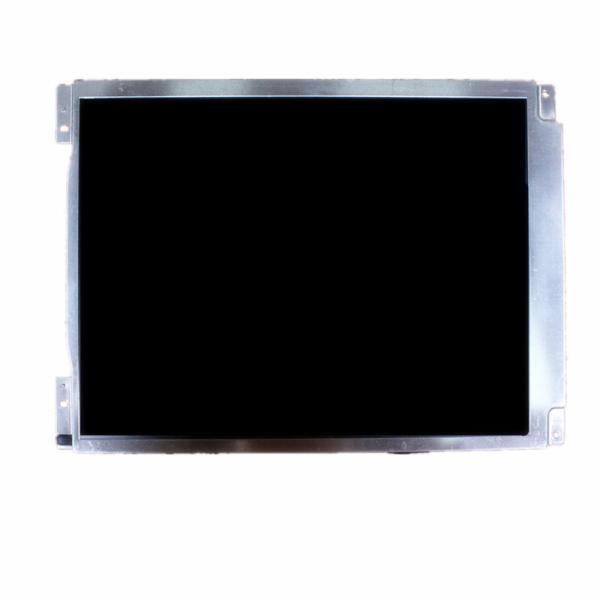

NLT Technologies, Ltd. NL6448AC33-97D is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are following: Wide Temperature, WLED Backlight, Life ≥ 100K hours, With LED Driver, 180° Reverse, Matte , No mounting compatibility with NL6448BC33-70D conventional 10.4" VGA.. Based on its features,this model be applied to Industrial etc
2. NLT NL6448AC33-97D Optical Details:
| Basic Information : | Luminance | 370 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 18 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 42% | sRGB | 59% coverage |
| Adobe RGB | 44% coverage | DCI-P3 | 44% coverage |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. NLT NL6448AC33-97D Mechanical Details:
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 246.5(W)×179.4(H) mm |
| Bezel Opening | 216.2(W)×163.4(H) mm | Overall Depth | 9.5±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - |
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
| Other Detail : | Mass | 410/425g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
4. NLT NL6448AC33-97D Interface Details:
| Signal Electrical : | Input Current | 230/300mA (Typ./Max.) | Input Voltage | 3.3/5.0V (Typ.)(VCC) |
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) |
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Interface Features : | Position | - | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9C-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|
10.4 Inch 640*480 NL6448AC33-97D Viewing angle 80/80/80/80 NEC TFT Display Images
|
