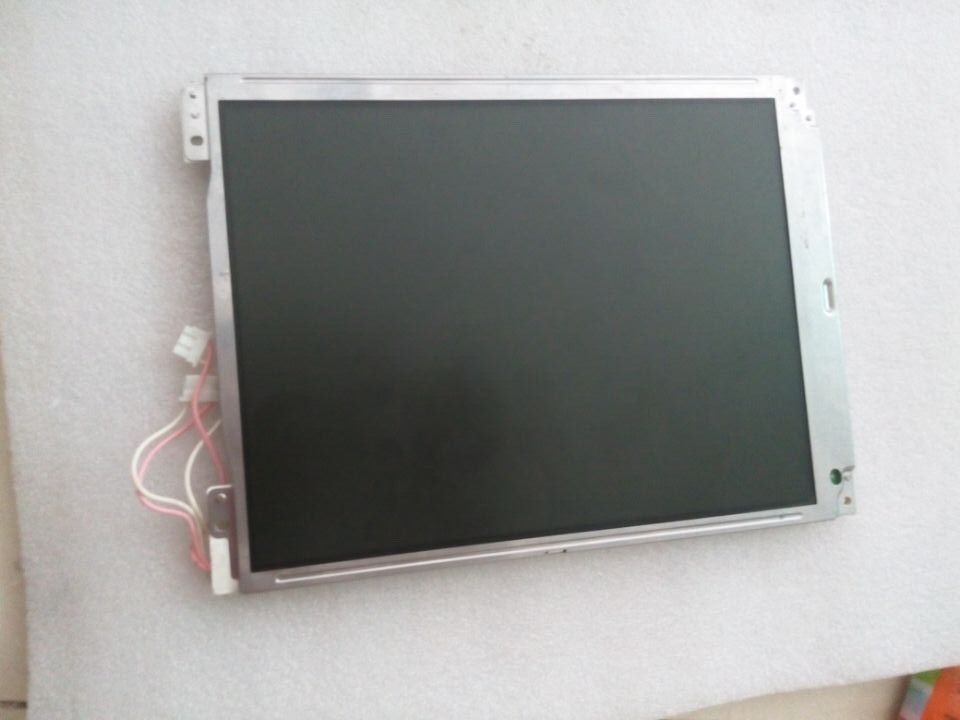

NEC NL6448BC33-70 Overview
NL6448BC33-70 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).
NEC NL6448BC33-70 Application Details
| Basic Detail : | Manufacturer | | Model Name | NL6448BC33-70 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - |
| Panel Size | 10.4 inch | Designed For | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS | |
EC NL6448BC33-70 Optical Details
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 3/15 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 57% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 42% coverage |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
NEC NL6448BC33-70 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×185.1(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm | Overall Depth | 10.5±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | |
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Other Detail : | Mass | 475/500g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
NEC NL6448BC33-70 Interface Details
| Signal Electrical : | Input Current | 300/200mA (Typ.) | Input Voltage | 3.3/5.0V (Typ.) |
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) |
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Interface Features : | Position | - | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9C-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F |
NL6448BC33-70 Lightting Details
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type (Top side) |
| Exchange | Replaceable (104LHS56) | Amount | 3 strings | Life | 70K(Typ.) (Hours) |
| Lamp Electrical : | Input Current | 50/55mA (Typ./Max.) | Input Voltage | 15.9/18.0/20.4V (Min./Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM08B-SRSS-TB | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-ACACACNN |
| Backlight Driver : | No |
