AUO B173HAN05.0 Application Details
| Basic Information : | Brand Model B173HAN05.0 Type LTPS TFT-LCD , LCM Used For Screen Size Alias 97.17B25.000, AUO509D |
| Environment : | Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C RoHS Vibration 1.5G (14.7 m/s²) |
| Typical Features : | |
| Remarks : | eDP1.4 |
AUO B173HAN05.0 Mechanical Details
| Pixel Features : | Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.0663×0.1989 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1989×0.1989 (H×V) [127PPI] |
| Mechanical Size : | Active Area(mm) 381.888(H) × 214.812(V) Bezel Area(mm) - Outline Dim.(mm) 389.89(H) × 238.31(V) Depth(mm) 3.3/3.5 (Typ./Max.) |
| Outline Features : | Form Style Flat Rectangle Shape Style Flat (PCBA Flat, T3.4~4.0mm) Aspect Ratio 16:9 (H:V) Orientation Landscape type |
| Mounting : | Without |
AUO B173HAN05.0 Optical Details
| Basic Information : | Luminance(cd/m²) 300 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode AHVA, Normally Black, Transmissive Best View on Symmetry Response(ms) 8 (Typ.)(Tr+Td), 5 (Typ.)(G to G), 3 (Typ.)(G to G)(OD) |
| Color Performance : | White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.7M (8-bit) Color Temperature 6485K White Uniformity 1.25/1.60 (Max.)(5/13 points) |
| 1931 Color Gamut : | NTSC Ratio 75% sRGB 100% coverage Adobe RGB 77% coverage DCI-P3 78% coverage Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO B173HAN05.0 Interface Detail
| Signal Electrical : | Voltage Supply 3.3V (Typ.) Current Supply 0.75A (Max.) Consumption 1.35/2.25W (Typ./Max.) |
| Signal Type : | eDP (4 Lanes), eDP1.4 Logic Voltage - |
| Interface Features : | Position Type Connector |
| Interface Detail : | Brand Model Pitch Pins Quantity Pin Configuration I-PEX 0.4 mm 40 pins 1 pcs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

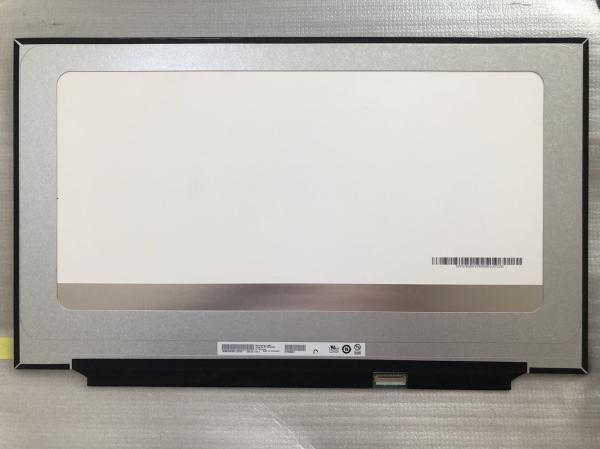

B173HAN05.0 AUO 17.3INCH 1920×1080RGB 300CD/M2 WLED eDP Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY Images
|
