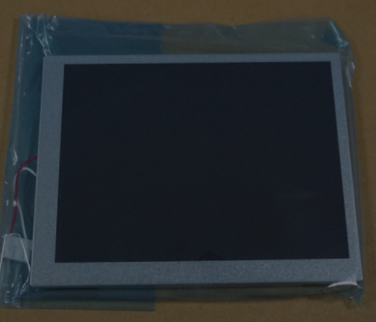

640×480 5.7 INCH VGA 141PPI 800nits lcd video Panel TX14D28VM5BAA

Brand Name : KOE

Model Number : TX14D28VM5BAA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 50PCS

Delivery Time : 2-3 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TX14D28VM5BAA

BRAND : KOE

SIZE : 5.7INCH

RESOLUTION : 640(RGB)×480, VGA, 141PPI

BRIGHTNESS : 800 cd/m² (Typ.)

TEMPERATURE RANGE : Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

KOE TX14D28VM5BAA Summary

TX14D28VM5BAA is a 5.7" diagonal a-Si TFT-LCD display panel product from Kaohsiung Opto-Electronics Inc. (hereafter called KOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

KOE TX14D28VM5BAA Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		TX14D28VM5BAA	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-30 ~ 80 °C	-30 ~ 80 °C	2.0G (19.6 m/s²)
Application :
Typical Features :
Remarks :	IPS-Like, Lite+

KOE TX14D28VM5BAA Mechanical Features

Screen Size :	5.7"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.060×0.180 mm	0.180×0.180 mm [141PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	115.2×86.4 mm	117.0×88.2 mm	131×102.2 mm	7.6±0.5 mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	108g (Typ.)	-	-
Holes & Brackets :	Rear mounting Pole (4-M2)

KOE TX14D28VM5BAA Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	800 cd/m² (Typ.)	TN, Normally White, Transmissive	400:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	-	80/80/80/80 (Typ.)(CR≥10)	50 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6066K	262K (6-bit)	X:0.320; Y:0.340
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	50%	66%	51%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	51%	37%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.43 (Max.)(9 points)
Performance :	3D Technology	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable

KOE TX14D28VM5BAA Electronics Features

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	2.62W

KOE TX14D28VM5BAA Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	40K(Typ.)	3S9P	Array	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	12.0±0.5V		180mA (Typ.)			2.16W (Typ.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	BHR-03VS-1	1 pcs	3 pins	4.0 mm	BLE-3PINS-ANC

KOE TX14D28VM5BAA Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		140/170mA (Typ./Max.)			460mW (Typ.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (1 ch, 6-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	JAE	FI-SEB20P-HF13E	1 pcs	20 pins	1.25 mm	LVDS-20P1C6B-005A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
