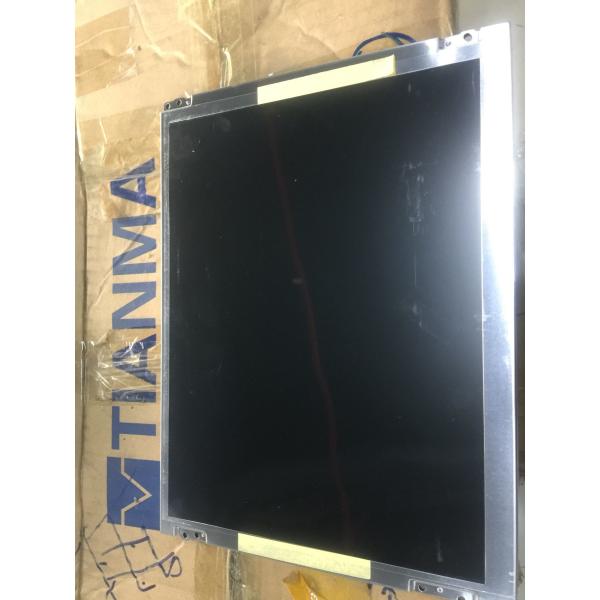

SVGA 82PPI 12.1" 800×600 RGB Tianma TFT LVDS TM121SDSG03 80/80/65/75 (Typ.)(CR≥10)

Name: SVGA 82PPI 121quot 800600 RGB Tianma TFT LVDS TM121SDSG03 80806575 TypCR10
Brand: TIANMA
Price: 1 USD

Wholesale SVGA 82PPI 12.1" 800×600 RGB Tianma TFT LVDS TM121SDSG03 80/80/65/75 (Typ.)(CR≥10) from china suppliers

Brand Name : TIANMA

Model Number : TM121SDSG03

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM121SDSG03

BRAND : TIANMA

SIZE : 12.1INCH

RESOLUTION : 800(RGB)×600 [SVGA] 82PPI

Viewing Angle : 80/80/65/75 (Typ.)(CR≥10)

Lamp Type : WLED

SIGNAL LNTERFACE : LVDS

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM121SDSG03 Application Details

Basic Information :	Brand Model TM121SDSG03 Type a-Si TFT-LCD , LCM Used For Screen Size 12.1 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration -
Typical Features :

TIANMA TM121SDSG03 Mechanical Details

Pixel Features :	Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.1025×0.3075 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.3075×0.3075 (H×V) [82PPI]
Mechanical Size :	Active Area(mm) 246(H) × 184.5(V) Bezel Area(mm) -
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type

TIANMA TM121SDSG03 Optical Details

Basic Information :	Luminance(cd/m²) - Contrast Ratio 700:1 (Typ.) (Transmissive) Viewing Angle 80/80/65/75 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 35 (Typ.)(Tr+Td)
Color Performance :	White Coordinate - Display Colors 262K/16.7M (6-bit / 8-bit) Color Temperature - White Uniformity 1.25/1.33 (Typ./Max.)(9 points)

TIANMA TM121SDSG03 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (180°)

TIANMA TM121SDSG03 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply -
Signal Type :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration STM MSB240420HE 1.25 mm 20 pins 1 pcs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
