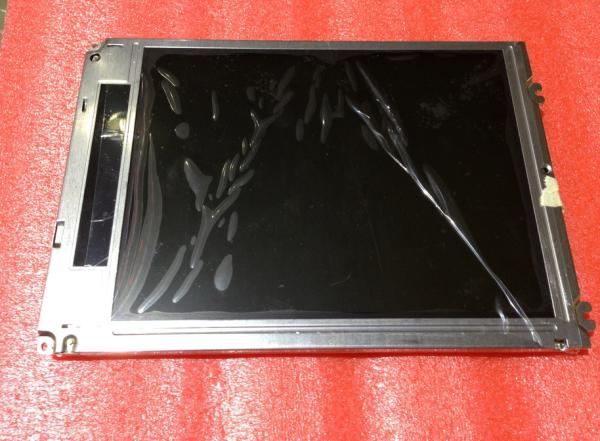

STCG057QVLAM-G02-S Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED INDUSTRIAL LCD DISPLAY

Name: STCG057QVLAMG02S Kyocera 57INCH LCM 320240RGB 500NITS WLED INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

Wholesale STCG057QVLAM-G02-S Kyocera 5.7INCH LCM 320×240RGB 500NITS WLED INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : Kyocera

Model Number : STCG057QVLAM-G02-S

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : STCG057QVLAM-G02-S

BRAND : Kyocera

SIZE : 5.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 500 cd/m² (Typ.)

Light Source : WLED , 40K hours , W/O Driver

Interface Type : Parallel RGB (1 ch, 6-bit) , 33 pins Connector

TEMPERATURE RANGE : Operating Temperature: -20 ~ 70 °C

Contact Now

Kyocera STCG057QVLAM-G02-S Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		STCG057QVLAM-G02-S	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-20 ~ 70 °C	-30 ~ 80 °C	-

Kyocera STCG057QVLAM-G02-S Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	500 (Typ.)	80/80/80/80 (Typ.)(CR≥5)	10/25 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	-	TN, Normally White, Transmissive	700 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	5570K	262K (6-bit)	X:0.330; Y:0.370
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	60%	75%	60%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	62%	45%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera STCG057QVLAM-G02-S Mechanical Features

Panel Size :	5.7"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	320(RGB)×240 [QVGA]	RGB Vertical Stripe	0.360×0.360 [70PPI]	0.120×0.360
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	115.2(H) × 86.4(V)	118.4(H) × 89.0(V)	144(H) × 104.8(V)	5.7/13.5 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Mounting :	Rear mounting poles (4-Φ2.6)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	158g (Typ.)	-	Glare (Haze 0%)

yocera STCG057QVLAM-G02-S Electronics Features

Reverse Scan :	Yes (U/D, L/R)

Kyocera STCG057QVLAM-G02-S Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Bottom side)	-	-	40K(Typ.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	12/13V (Typ./Max.)		100mA (Typ.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	PHR-3	2.0 mm	3 pins	1 pcs	BLE-3PINS-ANC

Kyocera STCG057QVLAM-G02-S Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		80/110mA (Typ./Max.)			-
Interface Features :	Position	Signal				Type
Interface Features :	-	Parallel RGB (1 ch, 6-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	Kyocera Elco	08-6210-033-340-800+	0.5 mm	33 pins	1 pcs	DRGB-33P1C6B-020A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
