Sharp LQ050A5AG03 Application Details
| Basic Info : | Panel Brand | | Panel Model | LQ050A5AG03 |
| Diagonal Size | 5.0" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
Sharp LQ050A5AG03 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×234 | Dot Pitch | 0.1065×0.3195 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3195×0.3195 mm (H×V) [79PPI] |
| Mechanical Size : | Display Area | 102.124×74.763 mm (H×V) | Bezel Area | - |
| Outline Dim. | 126.8×89.9 mm (H×V) | Outline Depth | 13/16.5 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | |
| Holes & Brackets : | Rear mounting holes (4-Φ2) |
| Other Features : | Weight | 180g (Max.) | Surface | Antireflection |
Sharp LQ050A5AG03 Optical Details
| Basic Information : | Brightness | 320 cd/m² (Typ.) | Contrast Ratio | 60:1 (Typ.) (Transmissive) |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | - | Response Time | 30/50 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | Full color |
| Color Temperature | 6485K | White Uniformity | - |
Sharp LQ050A5AG03 Electronics Details
Sharp LQ050A5AG03 Backlight Details
| Back-light Features: | Lamp Shape | U shape | Lamp Type | CCFL | Life Time | 10K(Min.) (Hours) |
| Replacement | - | Amount | 1 pcs | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 610±70V | Current Input | 6.0±0.5mA |
| Frequency | 30/60KHz (Min./Max.) | Kick-off Voltage | 1650/1700V (Max.)(Ta=+25/-30℃) |
| Consumption | 4.0W (Typ.) |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 1 pcs | BLE-2PINS-HL |
Sharp LQ050A5AG03 Interface Details
| Signal Systerm : | Analog RGB | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 8.0/-5.0V (Typ.)(VSH/VSL) | Current Input | 140/55mA (Typ.)(ISH/ISL) |
| Consumption | 1.4/1.7W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | - | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 102.124(W)×74.763(H) mm, outline size of 126.8(W)×89.9(H)×16.5(D) mm, with surface treament of Antireflection, net weight of 180g (Max.). As a TN, Normally White, Transmissive LCM product, LQ050A5AG03 can provides 320 cd/m² display brightness 60:1 transimissive contrast ratio, 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 30/50 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. LQ050A5AG03 utilizes Analog RGB as it's signal inputting systerm, which connected by 22 pins Connector with power supply voltage of 8.0/-5.0V (Typ.)(VSH/VSL
Product Tags:
|
|

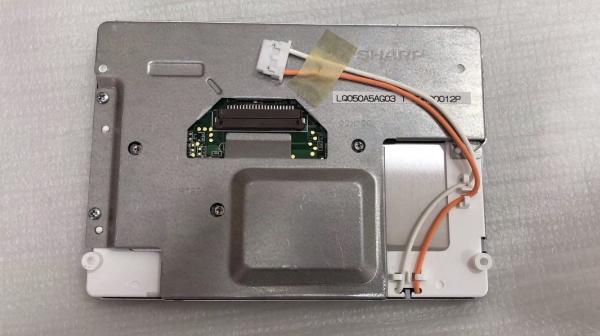

LQ050A5AG03 Sharp 5" LCM 800×480RGB INDUSTRIAL LCD DISPLAY Images
|
