LQ050 Series LQ050W1LC1B LQ050W1LA0A
Sharp LQ050W1LA0A Application Details
| Basic Information : | Brand | SHARP | Model | LQ050W1LA0A |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 5.0" | Alias | LQ0DZA0050 |
| Environment : | Storage Temp. | -25 ~~ 70 °C | Operating Temp. | 0 ~~ 60 °C |
Sharp LQ050W1LA0A Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 30 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.334 | Display Colors | 262K (6-bit) |
| Color Temperature | 6446K | White Uniformity | 1.10/1.30 (Typ./Max.)(5 points) |
Sharp LQ050W1LA0A Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.035×0.106 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.106×0.106 (H×V) [238PPI] |
| Mechanical Size : | Active Area(mm) | 109.1(H) × 63.9(V) | Bezel Area(mm) | 111.5(H) × 66.3(V) |
| Outline Dim.(mm) | 119(H) × 76.3(V) | Depth(mm) | 5.45/5.60 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:10 (H:V) | Orientation | Landscape type |
| Touch Panel : | Touch Points | 1 point | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - |
| Other Spec : | Weight | 67.0/72.0g (Typ./Max.) | Treatment | Antiglare, Hard coating (2H) |
Sharp LQ050W1LA0A Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 30 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.334 | Display Colors | 262K (6-bit) |
| Color Temperature | 6446K | White Uniformity | 1.10/1.30 (Typ./Max.)(5 points) |
Sharp LQ050W1LA0A Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 120/160mA (Typ.) |
| Signal Type : | LVDS (1 ch, 6-bit) | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF30FB-30DS-0.4V | 1 pcs | 30 pins | 0.4 mm |
Sharp LQ050W1LA0A Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Bottom side) |
| Replacement | - | Quantity | - | Life Time | 15K(Typ.) (Hours) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 5.0/7.4/20.0V (Min./Typ./Max.) | Current Supply | 125/240mA (Typ./Max.) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

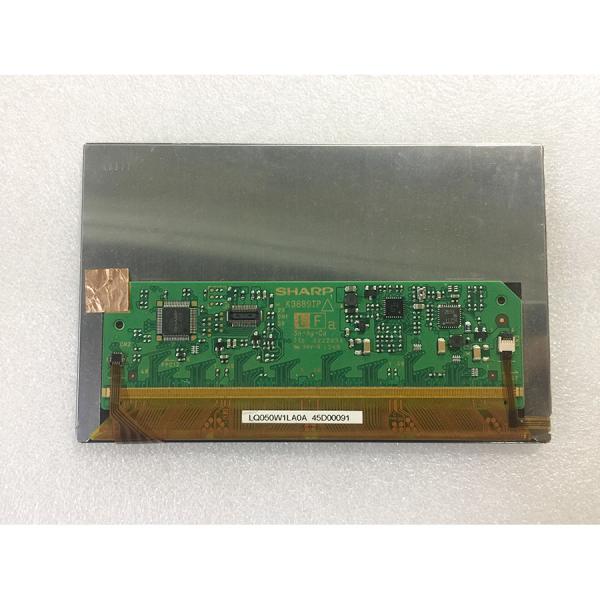

5" LCM 1024×600RGB 350cd/m² LQ050W1LA0A Sharp TFT LCD Display Images
|
