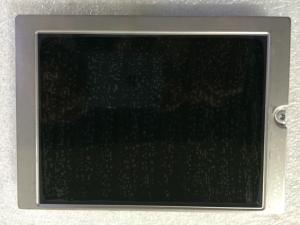

TCG057VG1AC-G50 Kyocera 5.7INCH LCM 640×480RGB 800NITS CCFL TTL INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG057VG1AC-G50

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : TCG057VG1AC-G50

BRAND : Kyocera

SIZE : 5.7INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 800 cd/m² (Typ.)

Interface Type : Parallel RGB (1 ch, 6-bit) , 33 pins Connector

Light Source : CCFL [1 pcs] , 75K hours , Optional

TEMPERATURE RANGE : Operating Temperature: -10 ~ 70 °C

Contact Now

Kyocera TCG057VG1AC-G50 Application Details

Basic Info :
Panel Brand

TCG057VG1AC-G50Panel Model
Diagonal Size
5.7"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-10 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating

Kyocera TCG057VG1AC-G50 Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.060×0.180 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.180×0.180 mm (H×V) [141PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Bezel Area
117.2×88.4 mm (H×V)
Outline Dim.
144×104.8 mm (H×V)
Outline Depth
13.0±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Holes & Brackets :
Rear mounting holes (4-Φ2.6)
Other Features :
Weight
220g (Typ.)
Surface
Glare (Haze 0%)

Kyocera TCG057VG1AC-G50 Optical Details

Basic Information :
Brightness
800 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/70 (Typ.)(CR≥5)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
10/25 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.311; Wy:0.318
Color Numbers
262K (6-bit)
Color Temperature
6699K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
70% coverage
Adobe RGB
53% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-

Kyocera TCG057VG1AC-G50 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON

Kyocera TCG057VG1AC-G50 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
75K(Typ.) (Hours)
Replacement
-
Lamp Shape
U shape
Position
Edge light type
Lamp Electrical :
Voltage Input
655V (Typ.)
Current Input
3.0/5.0mA (Min./Typ.)
Frequency
30/100KHz (Min./Max.)
Kick-off Voltage
1050/1575V (Max.)(Ta=+25/0℃)
Interface Features :
Type
Connector
Position
-
Lamp Driver
Optional
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL

Kyocera TCG057VG1AC-G50 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
210/270mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
Kyocera Elco
08-6210-033-340-800+
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020C


FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
