TM025ZDZ01 TIANMA 1.8 inch 320×320 400 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : TIANMA

Model Number : TM025ZDZ01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Supply Ability : 5000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM025ZDZ01

BRAND : TIANMA

SIZE : 1.8 inch

RESOLUTION : 320(RGB)×320 182PPI

BRIGHTNESS : 400 cd/m² (Typ.)

Viewing Angle : 70/70/60/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM025ZDZ01 Application Details

Basic Info : Panel Brand Panel Model TM025ZDZ01
Diagonal Size 1.8" Application


Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C
RoHS State Vibration Rating -
Specific Features :


TIANMA TM025ZDZ01 Optical Details

Basic Information : Brightness 400 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 12 o'clock Response Time 20 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.310; Wy:0.340 Color Numbers 16.7M (8-bit)
Color Temperature 6551K White Uniformity 1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 54% sRGB 75% coverage
Adobe RGB 57% coverage DCI-P3 57% coverage
Rec.2020 41% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM025ZDZ01 Mechanical Details

Pixel Features : Pixel Format 320(RGB)×320 Dot Pitch 0.0465×0.1395 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1395×0.1395 mm (H×V) [182PPI]
Mechanical Size : Display Area 44.64×44.64 mm (H×V) Bezel Area -
Outline Dim. 50.44×56.34 mm (H×V) Outline Depth 2.6 (Typ.) mm
Outline Features : Form Factor Flat Circular Orientation Landscape type
Aspect Ratio 1:1 (H:V) Shape Style
Other Features : Weight 15.2g (Typ.) Surface Hard coating

TIANMA TM025ZDZ01 Electronics Details

Reverse Scan : No
D-IC Detail : COG Built-in S6D051A1

TIANMA TM025ZDZ01 Backlight Details

Back-light Features: Lamp Shape 1 string Lamp Type WLED Life Time -
Replacement - Amount 4S1P Position Edge light type
Lamp Electrical : Voltage Input 12.8V (Typ.) Current Input 20mA (Typ.)
Consumption 256mW (Typ.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver No

TIANMA TM025ZDZ01 Interface Details

Signal Systerm : Parallel RGB (1 ch, 8-bit) + SPI Logic Voltage -
Signal Electrical : Voltage Input (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) Current Input -
Consumption 2.25mW (Typ.)
Interface Features : Type FPC Position -
FPC Detail : Brand Model Pin Pitch Pins Amount Configuration
0.3 mm 41 pins 1 pcs

TIANMA TM025ZDZ01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
924 pcs / box 21.9 Kgs 550×385×320 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM025ZDZ01 TIANMA 1.8 inch 320×320 400 cd/m² INDUSTRIAL LCD DISPLAYTM025ZDZ01 TIANMA 1.8 inch 320×320 400 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

WLED Backlight Tianma TFT



WQVGA TIANMA LCD Panel


Wholesale TM025ZDZ01 TIANMA 1.8 inch 320×320 400 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

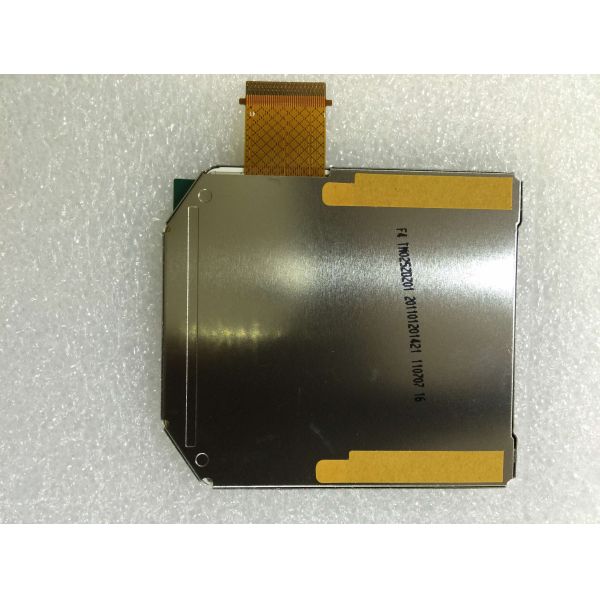

TM025ZDZ01 TIANMA 1.8 inch 320×320 400 cd/m² INDUSTRIAL LCD DISPLAY Images
