TM035KBH11-09 TIANMA 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

TM035KBH11-09 TIANMA 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : TIANMA

Model Number : TM035KBH11-09

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 3000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM035KBH11-09

BRAND : TIANMA

SIZE : 3.5"inch

RESOLUTION : 320(RGB)×240 (QVGA) 115PPI

BRIGHTNESS : 350 cd/m² (Typ.)

Viewing Angle : 70/70/60/70 (Typ.)(CR≥10

Lamp Type : WLED

SIGNAL LNTERFACE : LVDS

TEMPERATURE RANGE : Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

Contact Now

TIANMA TM035KBH11-09 Application Features

Basic Information : Brand Name Model Name Type Model Alias
TM035KBH11-09 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
-20 ~ 60 °C -30 ~ 70 °C -
Application :


Typical Features :



Remarks : 3 in 1 FPC; Down side FPC (37.00mm lengt

TIANMA TM035KBH11-09 Mechanical Features

Screen Size : 3.5"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320(RGB)×240, QVGA RGB Vertical Stripe 0.073×0.219 mm 0.219×0.219 mm [115PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
70.08×52.56 mm 72.08×54.56 mm 76.9×63.9 mm 4.0±0.2 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Touch Panel : Touch Points Signal Type Controller Technology
- - Without touch controller 4-wire Resistive Touch
Other Spec : Mass Panel Cover Surface Treatment
40.6g - Antiglare, Hard coating (3H)

TIANMA TM035KBH11-09 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
350 cd/m² (Typ.) TN, Normally White, Transmissive 400:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
12 o'clock 70/70/60/70 (Typ.)(CR≥10) 20 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6090K 16.7M (6-bit + Dithering) X:0.320; Y:0.335
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
52% 72% 54%
DCI-P3 Coverage Rec.2020 Coverage Remarks
54% 39% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.33 (Typ./Max.)(9 points)

TIANMA TM035KBH11-09 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : No
Driver IC List: COG Built-in NV3035C
Time Controller (T-CON) : Embedded T-CON

TIANMA TM035KBH11-09 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type - 6S1P 1 string -
WLED Electrical : Input Voltage Input Current Power Consumption
19.2/21.6V (Typ./Max.) 20/25mA (Typ./Max.) 384mW (Typ.)
Interface Features : WLED Driver State Physical Type Interface Position
No Included in panel signal interface

TIANMA TM035KBH11-09 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) - 45/65mW (Typ./Max.)
Voltage for Display Signals : 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features : Signal Type Physical Type Interface Position
Digital RGB (8/24-bit) + SPI, CCIR601/656 FPC -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
1 pcs 54 pins 0.5 mm

TIANMA TM035KBH11-09 Packing Features

Package Box : Amount Weight Size (L×W×H)
168 pcs / box 10.617±5% Kgs 530×350×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours

TM035KBH11-09 TIANMA 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAYTM035KBH11-09 TIANMA 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

QVGA TIANMA LCD Panel



SVGA TIANMA LCD Panel


Wholesale TM035KBH11-09 TIANMA 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

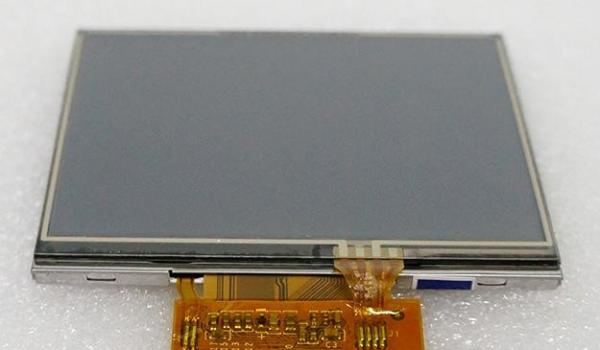

TM035KBH11-09 TIANMA 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY Images
