LC550EQC-SPA1 LG Display 55" 3840(RGB)×2160, 0 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

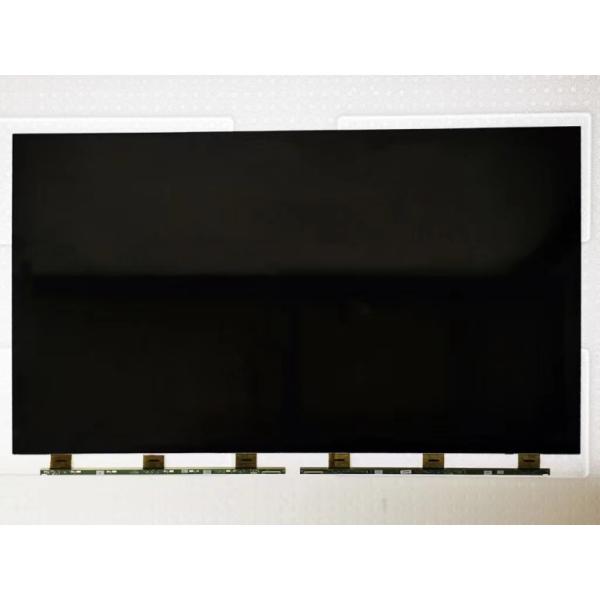

LC550EQC-SPA1 LG Display 55" 3840(RGB)×2160, 0 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2

Brand Name : LG Display

Model Number : LC550EQC-SPA1

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : LG Display

Diagonal Size : 55"

Resolution : 3840(RGB)×2160, UHD 80PPI

Brightness : 0 cd/m²

Viewing Angle : 89/89/89/89 (Min.)(CR≥10)

Environment : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

LG Display LC550EQC-SPA1 Application Details

Basic Information : Brand Model LC550EQC-SPA1
Type CELL a-Si TFT-LCD Used For
Screen Size 55" Alias LC550EQC (SP)(A1)
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C

LG Display LC550EQC-SPA1 Mechanical Details

Pixel Features : Resolution 3840(RGB)×2160, UHD Dot Pitch(mm) 0.105×0.315 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.315×0.315 (H×V) [80PPI]
Mechanical Size : Active Area(mm) 1209.6(H) × 680.4(V) Bezel Area(mm) -
Outline Dim.(mm) 1221.4(H) × 694.8(V) Depth(mm) 1.2 (Typ.)
Outline Features : Form Style Flat Rectangle Glass Thickness -
Aspect Ratio 16:9 (H:V) Orientation Landscape type
Other Spec : Weight 2.50/2.63Kgs (Typ./Max.) Treatment Antiglare (Haze 3%), Hard coating (2H), Antireflection

LG Display LC550EQC-SPA1 Optical Details

Basic Information : Luminance(cd/m²) 0 Contrast Ratio 1300:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Min.)(CR≥10) Display Mode IPS, Normally Black, Transmissive
Best View on Symmetry Response(ms) 8/10 (Typ.)(Tr/Td)
Color Performance : White Coordinate - Display Colors 1.07B (8-bit + Dithering)
1931 Color Gamut : NTSC Ratio - sRGB 85% coverage
Adobe RGB 70% coverage DCI-P3 69% coverage
Rec.2020 51% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility No Transmissivity 5.49% (Typ.)(with Polarizer)

LG Display LC550EQC-SPA1 Interface Details

Signal Electrical : Voltage Supply 12.0V (Typ.)(VLCD) Current Supply 930/1210mA (Typ./Max.)
Signal Type : EPI Signal Voltage -
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
HRS TF06L-60S-0.5SH 2 pcs 60 pins 0.5 mm

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1221.4(W)×694.8(H)×1.2(D) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), Antireflection, net weight of 2.50/2.63Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive CELL product, LC550EQC-SPA1 can provides 1300:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product have no backlight. LC550EQC-SPA1 utilizes EPI as it's signal inputting systerm, which connected by 120 pins Connector with power supply voltage of 12.0V (Typ.)(VLCD)
