BOE NV140WUM-T02 Application Details
| Basic Info : | Panel Brand | | Panel Model | NV140WUM-T02 |
| Diagonal Size | 14.0" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | BOE0A2F |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | | Vibration Rating | 1.5G (14.7 m/s²) |
BOE NV140WUM-T02 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×1200 [WUXGA] | Dot Pitch | 0.05236×0.15708 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.15708×0.15708 mm (H×V) [161PPI] |
| Mechanical Size : | Display Area | 301.594×188.496 mm (H×V) | Bezel Area | - |
| Outline Dim. | 306.29×198.6 mm (H×V) | Outline Depth | 3.0/5.1 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Touch Screen : | Touch Points | 10 points | TP Signal | I²C (Support Win10, Win11) |
| TP Controller | With controller | Touchscreen | On-Cell Touch |
| Holes & Brackets : | Without |
| Other Features : | Weight | 300g (Max.) | Surface | Antiglare, Hard coating (3H) |
BOE NV140WUM-T02 Optical Details
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | HADS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 20 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.67 (Max.)(5/13 points) |
| 1931 Color Gamut : | NTSC Ratio | 48% | sRGB | 65% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 49% coverage |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NV140WUM-T02 Backlight Details
| Back-light Features: | Lamp Shape | 5 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
| Replacement | - | Amount | 10S5P | Position | Edge light type |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | 217mA (Max.) |
| Consumption | 2.6W (Max.) |
BOE NV140WUM-T02 Interface Details
| Signal Systerm : | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 176/200mA (Typ./Max.) |
| Consumption | 0.58/0.6W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSAK24025P40 | 0.5 mm | 40 pins | 1 pcs |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.29(W)×198.6(H)×5.1(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a HADS, Normally Black, Transmissive LCM product, NV140WUM-T02 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV140WUM-T02 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

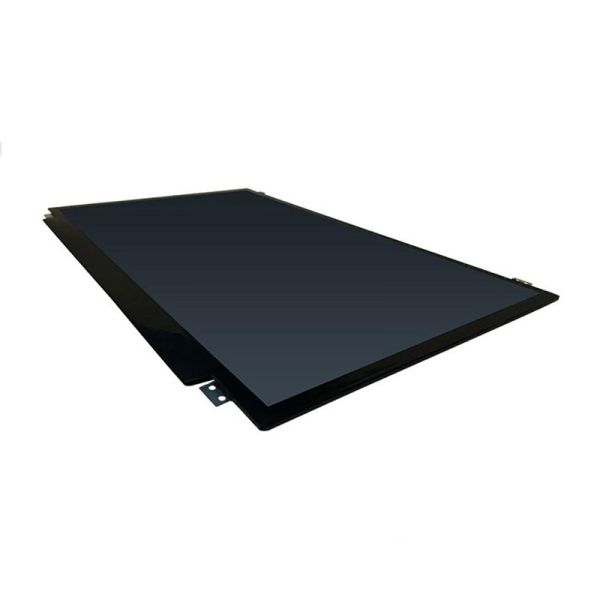

NV140WUM-T02 BOE 14.0" 1920(RGB)×1200, 300 cd/m² INDUSTRIAL LCD DISPLAY Images
|
