Samsung LTM220MT12 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| | LTM220MT12 | a-Si TFT-LCD , LCM | - |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C |
Samsung LTM220MT12 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 250 (Typ.) | 85/85/80/80 (Typ.)(CR≥10) | 5 (Typ.)(Tr+Td) |
| Best View on | Display Mode | Contrast Ratio |
| - | TN, Normally White, Transmissive | 1000 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 90% | 70% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.33 (Max.)(9 points) |
Samsung LTM220MT12 Mechanical Features
| Panel Size : | 22.0" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1680(RGB)×1050 [WSXGA+] | RGB Vertical Stripe | 0.282×0.282 [90PPI] | 0.094×0.282 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 473.76(H) × 296.1(V) | 477.7(H) × 300.1(V) | 493.7(H) × 320.1(V) | 10.2/10.7 (Typ./Max.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | Normal bezel |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Weight | Panel Cover | Treatment |
| 2.20Kgs (Max.) | - | Antiglare (Haze 25%), Hard coating (3H) |
Samsung LTM220MT12 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| WLED | Edge light type (Bottom side) | 10S3P | 3 strings | 40K(Min.) | - |
| WLED Electrical : | Voltage Supply | Current Supply | Power |
| 30.0V (Typ.) | 100/130mA (Typ./Max.) | 9.0W (Typ.) |
| Interface Features : | Position | Backlight Driver | Type |
| - | No | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| molex | 104086-0410 | 1.25 mm | 4 pins | 1 pcs | BLE-4PINS-ACCC |
Samsung LTM220MT12 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 5.0V (Typ.) | 1.5A (Typ.) | 5.5W (Typ.) |
| Interface Features : | Position | Signal | Type |
| - | LVDS (2 ch, 8-bit) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| UJU | IS100-L30B-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 473.76(W)×296.1(H) mm, outline size of 493.7(W)×320.1(H)×10.7(D) mm, viewing area size of 477.7(W)×300.1(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.20Kgs (Max.). As a TN, Normally White, Transmissive LCM product, LTM220MT12 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 40K hours, external backlight driver is additionally needed. LTM220MT12 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
|
|

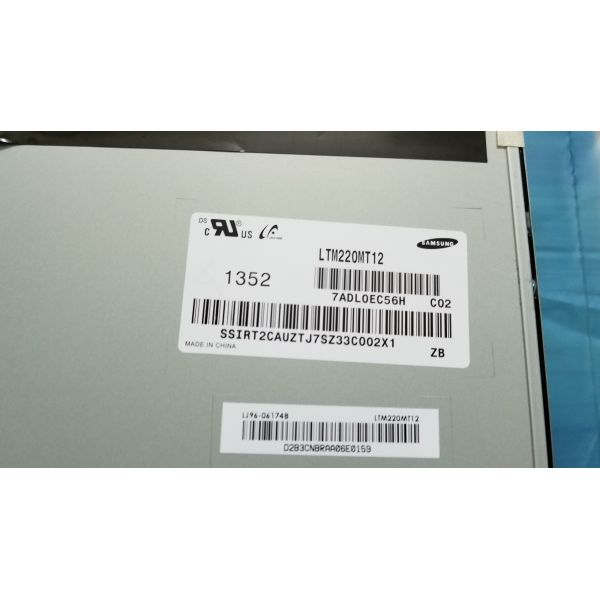

LTM220MT12 Samsung 22.0" 1680(RGB)×1050, 250 cd/m² INDUSTRIAL LCD DISPLAY Images
|
