LG Display LM315WR6-SSA2 Application Details
| Basic Detail : | Manufacturer | | Model Name | LM315WR6-SSA2 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM315WR6 (SS)(A2) |
| Panel Size | 32.0 inch | Designed For | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.0G (9.8 m/s²) |
LG Display LM315WR6-SSA2 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 85% | sRGB | 100% coverage |
| Adobe RGB | 80% coverage | DCI-P3 | 88% coverage |
| Rec.2020 | 64% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM315WR6-SSA2 Mechanical Details
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.06053×0.18159 mm | Pixel Pitch(W×H) | 0.18159×0.18159 mm [139PPI] |
| Physical Size : | Active Viewing | 697.306(W)×392.234(H) mm | Overall Dim. | 709.4(W)×405.95(H) mm |
| Bezel Opening | - | Overall Depth | 10.0/13.6 (Typ./Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | 4-side borderless |
| Fixation : | Rear mounting holes |
| Other Detail : | Mass | 3.17/3.33Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM315WR6-SSA2 Interface Details
| Signal Electrical : | Input Current | 480/600mA (Typ./Max.) | Input Voltage | 10.0V (Typ.) |
| Consumption | 4.8/6.0W (Typ./Max.) | Signal Interface | eDP (4 Lanes), HBR2 (5.4G/lane) |
| Interface Features : | Position | | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | EDP-30P4L-031A |
LG Display LM315WR6-SSA2 Lightting Details
| Lamp Features: | Lamp Shape | 4 strings × 2CN | Lamp Type | WLED | Position | Edge light type (Bottom side) |
| Exchange | - | Amount | 11S4P×2CN | Life | 30K(Min.) (Hours) |
| Lamp Electrical : | Input Current | 83/88mA (Typ./Max.) | Input Voltage | 31.8±2.2V |
| Consumption | 21.1/22.6W (Typ./Max.) |
| Interface Features : | Position | | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BM06B-SHJS-TB(HF) | 2 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 709.4(W)×405.95(H)×13.6(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.17/3.33Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM315WR6-SSA2 can provides 350 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 11S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WR6-SSA2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.).
|
|

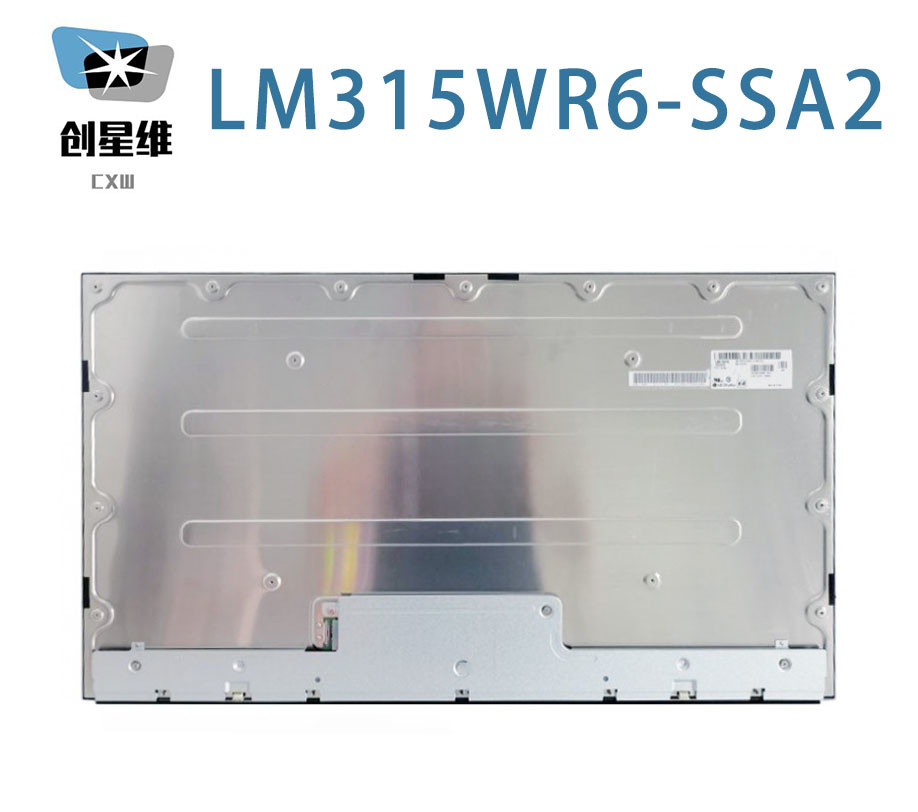

LM315WR6-SSA2 LG Display 32.0" 3840(RGB)×2160, 350 cd/m² INDUSTRIAL LCD DISPLAY Images
|
