B160QAN03.H AUO 16.0" 2560(RGB)×1600, WQXGA 188PPI 500 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

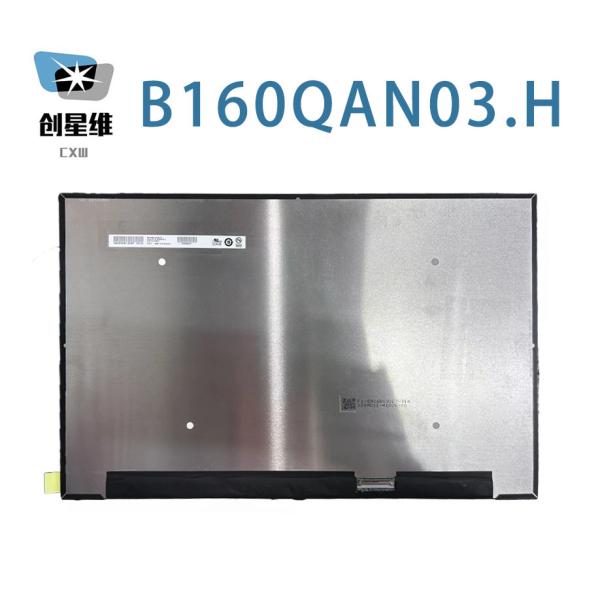

B160QAN03.H AUO 16.0" 2560(RGB)×1600, WQXGA 188PPI 500 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2

Brand Name : AUO

Model Number : B160QAN03.H

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : AUO

Diagonal Size : 16.0"

Resolution : 2560(RGB)×1600, WQXGA 188PPI

Luminance : 500 cd/m²

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Environment : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

AUO B160QAN03.H Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
B160QAN03.H LTPS TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
0 ~ 50 °C -20 ~ 60 °C

AUO B160QAN03.H Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
500 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 9 (Typ.)(Tr+Td), 7 (Typ.)(G to G), 3 (Typ.)(G to G)(OD)
Best View on Display Mode Contrast Ratio
Symmetry AHVA, Normally Black, Transmissive 1200 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
White Variation : 1.25/1.60 (Max.)(5/13 points

AUO B160QAN03.H Mechanical Features

Panel Size : 16.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
2560(RGB)×1600 [WQXGA] RGB Vertical Stripe 0.1346×0.1346 [188PPI] 0.1346×0.1346
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
344.68(H) × 215.42(V) - 349.678(H) × 224.424(V) 2.6/4.6 (Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:10 (H:V) Slim (PCBA Bent, T≤3.0mm)
Mounting : Without
Other Detail : Weight Panel Cover Treatment
320g (Max.) - Antiglare, Hard coating (3H)

AUO B160QAN03.H Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 15K(Min.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Included in signal interface
Driver Electrical : Voltage Supply Current Supply Power Consumption
5.0/12.0/20.0V (Min./Typ./Max.) - 4.63W (Max.)

AUO B160QAN03.H Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 545/633mA (Typ./Max.) 1.8/1.9W (Typ./Max.)
Interface Features : Position Signal Type
eDP (4 Lanes), eDP1.4 Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
I-PEX 20765-040E-11A 0.5 mm 40 pins 1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.68(W)×215.42(H) mm, outline size of 349.678(W)×224.424(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 320g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, B160QAN03.H can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 7 (Typ.)(G to G), 3 (Typ.)(G to G)(OD) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B160QAN03.H utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
